Premium PCB Quote
- Views: 23060
- Product Code: PTY002
- Reward Points: 100
- Availability: In Stock
- $0.00
Descristion

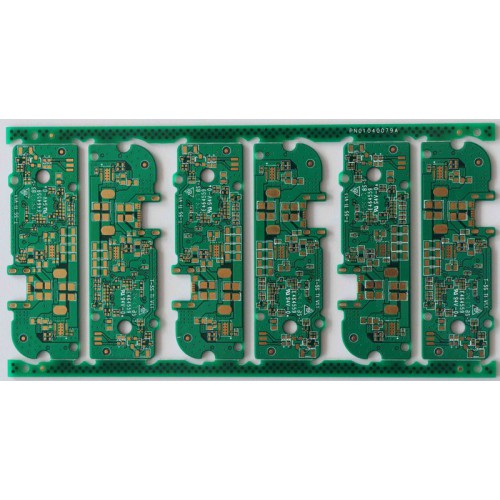

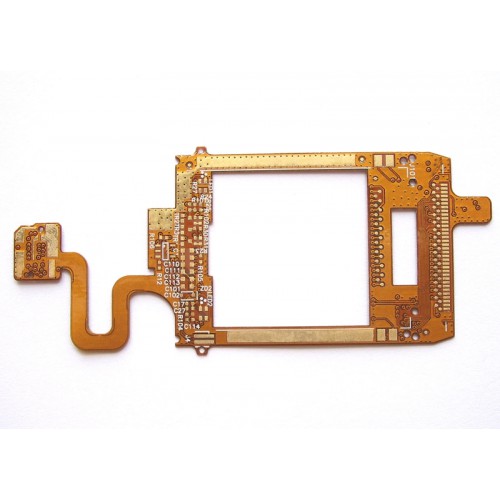

If you need more special process for your boards ,such as blind vias, FPC, big size,aluminium etc, this premium PCB service can help you.
Just select the PCB options and upload your gerber files and you will get a quotation in 3 workdays.
How to get your PCB:
Select the options--->Upload your gerber--->"Quote Now"--->Get a quotation by email--->Payment--->Production--->Shipped
If the options do not cover all the specification you require, please write it in the "other requirement" option. Any other requirements or questions, please feel free to send email to pcb@shenzhen2u.com.
| Item | Specs | |
| Standard PCB | Premium PCB | |
| Material | FR-4 | FR-4，FR-4 (High Tg), Aluminate core,FLEX |
| Number of layers | 1, 2, 4, 6 | 1~20 |
| Available Board Thickness | 0.6(4 layer except), 0.8, 1.0, 1.2, 1.6, 2.0 | 0.2, 0.4, 0.6, 0.8, 1.0, 1.2, 1.6, 2.0, 2.5, 3.0, 3.5, 4.0 |
| Special Process | NO | Blind vias,Buried vias,Half vias, Impedance control |
| Thickness Tolerance | (t >= 1.0) ± 10% | (t >= 1.0) ± 10% |
| Thickness Tolerance | (t < 1.0) ± 0.1mm | (t < 1.0) ± 0.1mm |
| Minimum trace width | 0.1524mm/6mil | 0.076mm/3mil |
| Minimum trace/vias/pads space | 0.1524mm/6mil | 0.076mm/3mil |
| Minimum copper to board edge clearance | 0.3mm | 0.25mm |
| Minimum silkscreen width | 0.1524mm/6mil | 0.1524mm/6mil |
| Out Layer Copper Thickness | 35~70um/1~2oz | 35~140um/1~4oz |
| Inner Layer Copper Thickness | 17um/0.5oz | 17~70um/0.5~2oz |
| Drilling Hole(Mechanical) | 0.3 ~ 6.35mm | 0.2~6.35mm |
| Finish Hole(Mechanical) | 0.8 - 6.35mm | 31.50 - 250.00 |
| SMT min Solder Mask Width | 0.1mm/3.94mil | 0.1mm/3.94mil |
| Min Solder Mask Clearance | 0.13mm/5.12mil | 0.1mm/3.94mil |
| Max PCB Dimension | 30mm*30mm | 1016mm*610mm |
| Aspect Ratio | 8:1 | |
| Solder Mask Type | Photosensitive ink | |
