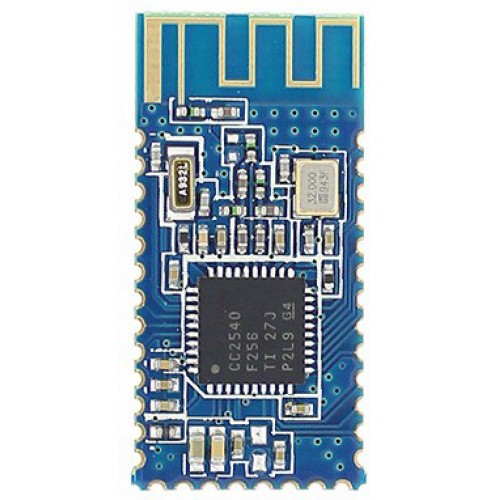

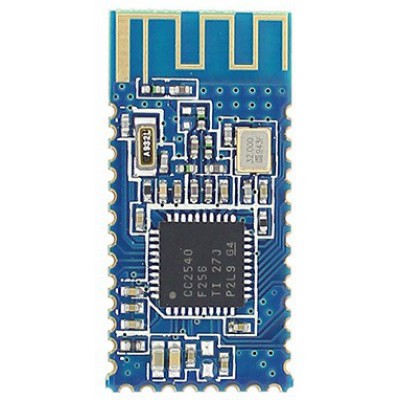

BLE to Uart Module :HM-10

The Bluetooth UART RS232 serial Converter Module HM-10 can easily transfer the UART data through the wireless Bluetooth, without complex PCB layout or deep knowledge in the Bluetooth software stack, you can combine this bluetooth module with your system:

• MCU, ARM or DSP systems.
• SOC systems.
• Personal Digital Assistants (PDAs)
• Computer Accessories
• Other systems your want to use under bluetooth functions.

Features:

• CC2541 Bluetooth Chip Solution
• Fully Qualified Bluetooth V4.0 Ble
• Full Speed Bluetooth Operation with Full Piconet Support and Scatternet Support
• RoHS Compliant
• UART interface and with baudrate setup function
• Size:26.9mm x 13mm x 2.2 mm

Documents:

       Datasheet: HM-10
